Application

Shot Blasting & Surface Preparation: Collects abrasive dust and metallic fines generated during blasting operations.
Powder Coating Industry: Recovers overspray powder, ensuring clean booths and reducing wastage.
Pharmaceutical Industry: Captures active pharmaceutical ingredients (APIs), chemical dusts, and fine powders.
Food Processing Plants: Used for flour, spices, sugar, and powdered additives, ensuring hygienic and dust-free environments.
Metalworking & Welding Shops: Removes welding fumes, plasma cutting smoke, and grinding dust.
Plastics & Electronics: Controls dust from cutting, grinding, and finishing of plastic parts and circuit housings.
Cement, Minerals, and Foundries: Captures fine cement dust, mineral dust, and furnace emissions.

Cartridge Filter Dust Collector

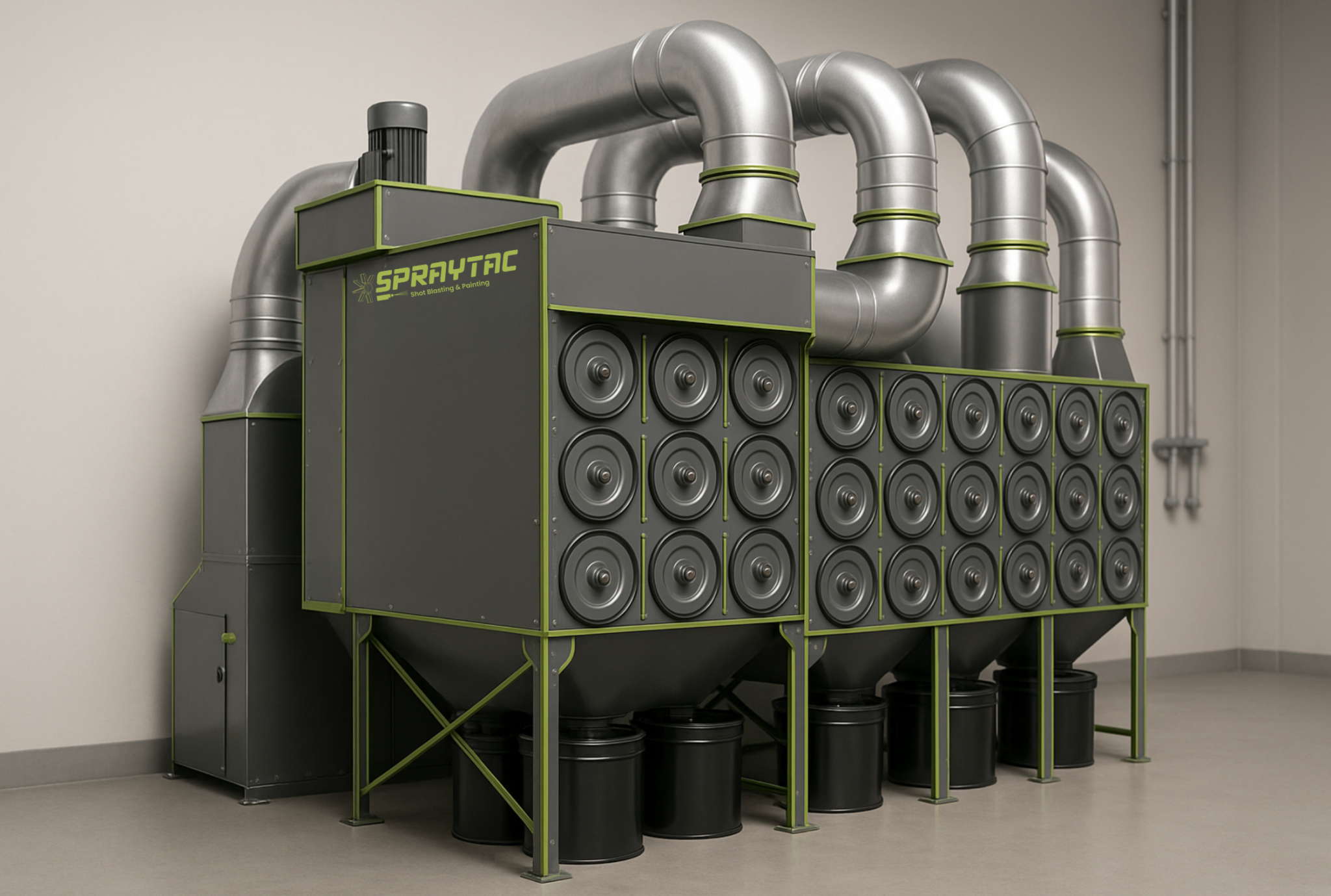

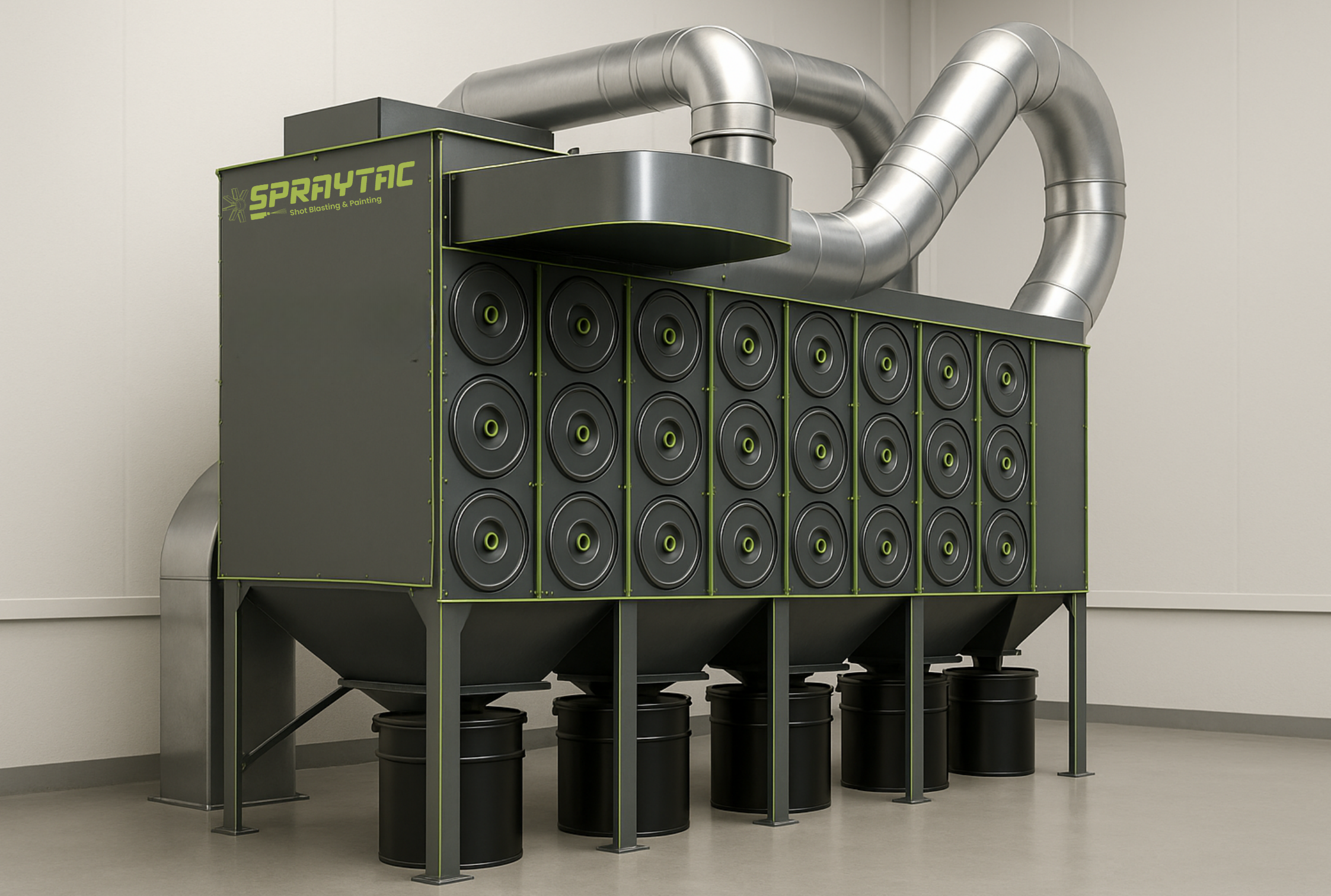

The Cartridge Filter Dust Collector is one of the most advanced and compact dust collection systems available today. It is designed specifically to handle Fine, Dry & Sub-Micron Particulate Matter that is difficult to capture with conventional bag filters. Unlike bag houses, the cartridge collector uses Pleated Filter Cartridges, which provide Three to Four Times More Filtration Area in the same housing space. This not only makes the system more compact but also significantly improves efficiency.

The pleated filters are made from advanced Polyester, Cellulose, PTFE-Coated, or Nano-Fiber Filter Media. These ensure Superior Filtration Efficiency (up to 99.99%), longer filter life, and resistance to abrasion and chemical attack. A highly efficient Pulse-Jet Cleaning System is integrated into the design, which periodically cleans the cartridges using compressed air bursts. This keeps the filters unclogged, ensuring consistent performance even under heavy dust loads.

Standard / Customization

Airflow Capacity: 500 m³/hr – 50,000 m³/hr.
Filter Media Options: Polyester, nano-fiber coated, PTFE, anti-static, flame-retardant.
Cleaning Systems: Fully automatic pulse-jet cleaning, manual cleaning for smaller units.
Filter Cartridge Types: Cylindrical, oval, or custom geometries.
Cabinet Construction: Heavy-duty mild steel or stainless steel for food/pharma use.
Optional Features: Explosion-proof models (ATEX compliant), HEPA after-filters, noise-reduction enclosures, modular designs for expansion.

Features:

High-efficiency pleated cartridges with 99.9% Filtration Efficiency.
Compact modular design suitable for small to large factories.
Automatic pulse-jet cleaning system reduces manual maintenance.
Tool-free filter replacement and easy servicing.
Rugged and durable steel construction.
Energy-efficient blowers and fans.
Low-pressure drop design ensures Consistent Airflow.
Optional explosion-proof (ATEX) and stainless steel variants.
Expandable modular system for future capacity growth.
Noise control and dust re-collection options available.

Specializations:

Best suited for industries requiring Fine Dust & Fume Collection.
Works effectively with metallic, chemical, and organic dusts.
Suitable for both Standalone Booths and Centralized Dust collection Systems.
Provides Dust-Free, Clean Air Environment for safe working conditions.

Material Compatibility

Metallic dust: steel, aluminum, copper, zinc.
Abrasive blasting dust: garnet, steel grit, glass beads.
Pharmaceutical powders: APIs, excipients, coatings.
Food powders: flour, sugar, spices, starch.
Paint and powder coating overspray.
Chemical dusts and plastics granules.

Working Principle

Dust-laden air enters the collector through the inlet plenum.
Heavier particles settle into a hopper or bin by gravity.
Fine particles pass through the pleated cartridge filters, where they are trapped.
Clean, filtered air is discharged through the exhaust fan or ducting.
At intervals, the pulse-jet cleaning system sends a burst of compressed air into the cartridges, dislodging the dust cake.
The collected dust falls into a bin, ready for disposal or recycling.
