Application

  • Pipeline Industry – Cleaning and surface preparation of pipes before coating or wrapping.
  • Oil & Gas Industry – Preparation of pipes for corrosion protection.
  • Steel Mills – Rust and scale removal from seamless and welded pipes.

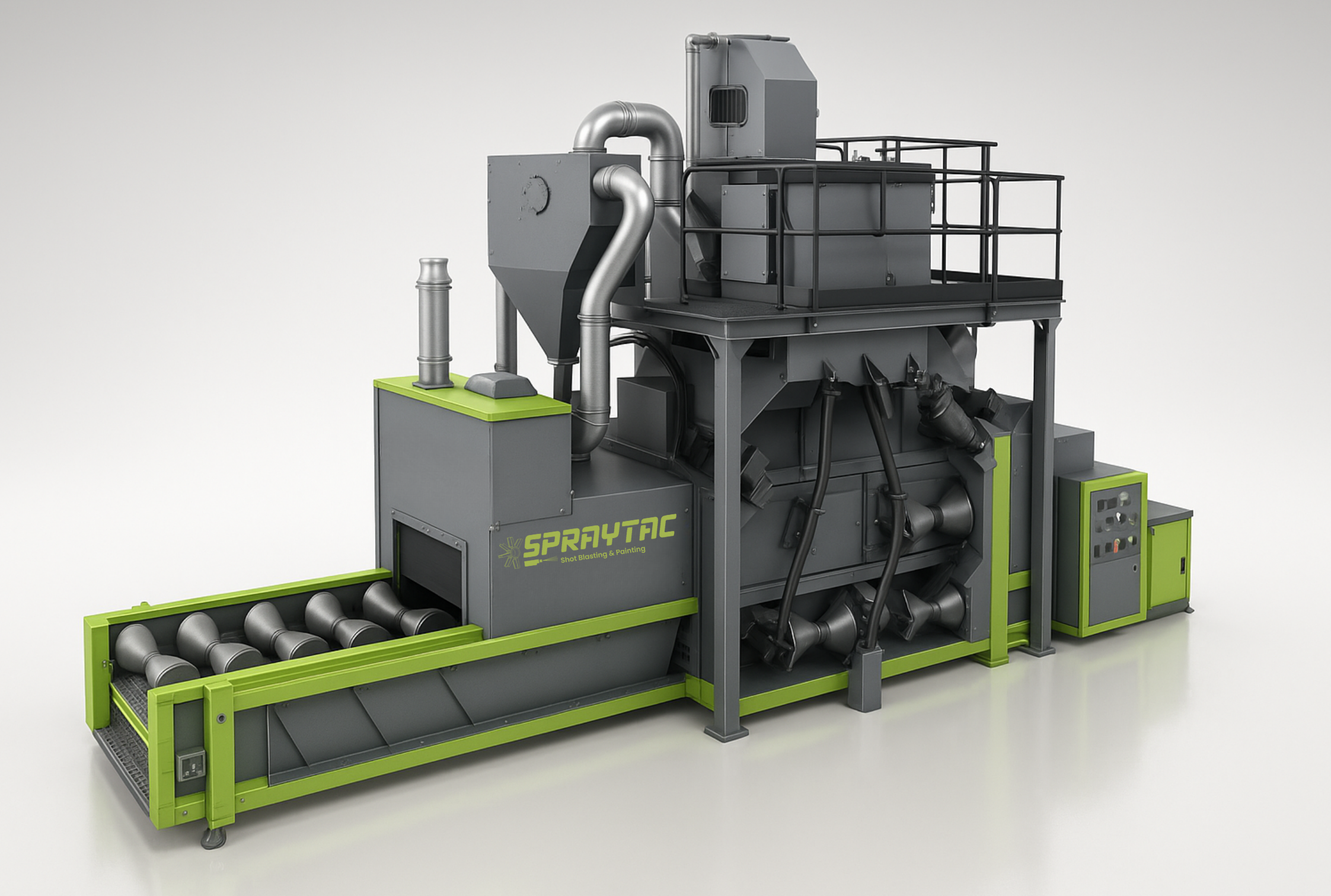

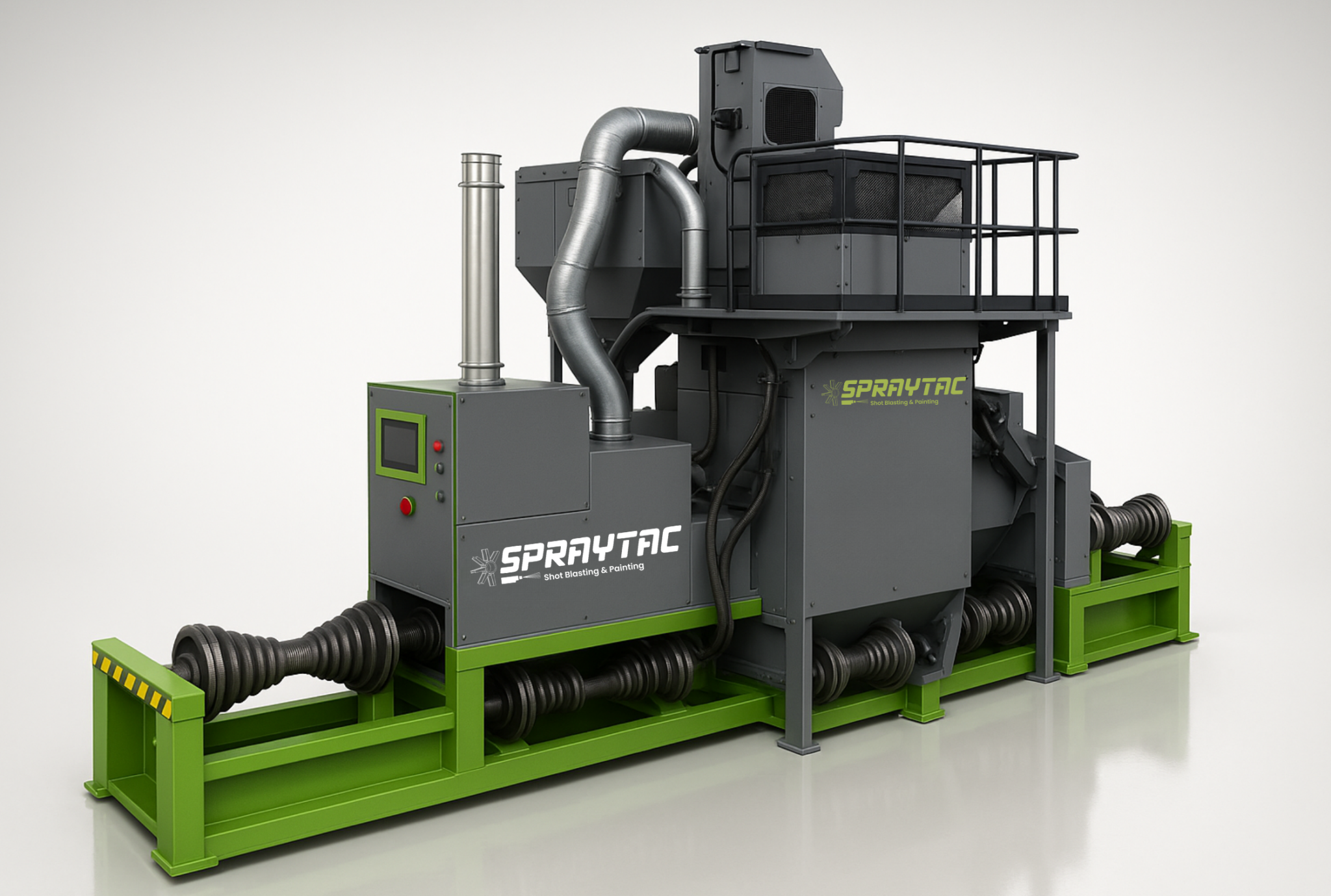

Diabolo Type Shot Blasting Machine

The Diabolo Type Shot Blasting Machine is a Specialized Roller Conveyor Blasting System designed specifically for Pipes, Tubes & Cylindrical Workpieces. It uses Diabolo-Shaped Conveyor Rollers that securely rotate pipes as they pass through the blasting tunnel, allowing for Complete 360° Cleaning in one continuous process.
The Diabolo Type Shot Blasting Machine is engineered for Continuous, High-Speed Processing of Pipes & Tubes. Unlike flat conveyor systems, its diabolo rollers provide Secure Grip & Controlled Rotation, guaranteeing complete cleaning around the entire circumference of the pipe.
This machine is ideal for industries such as Oil & Gas, Water Pipeline Manufacturing & Steel Plants, where pipe preparation is a critical step before Anti-Corrosion Coating, Wrapping, or Welding.

Standard / Customization

  • Pipe Diameters: 50 mm – 1,500 mm.
  • Blast Wheels: 2 – 8 depending on pipe size.
  • Conveyor System: Diabolo rollers for rotation + forward movement.
  • Integration Options: Painting, coating, or wrapping lines.
Enquiry Now

Features:

  • Diabolo roller conveyor system for rotating pipes.
  • Multi-angle blast wheels for 360° cleaning.
  • Adjustable conveyor speed for surface finish control.
  • Automatic abrasive recovery and cleaning system.
  • High-efficiency dust collection unit.
  • PLC/HMI automation for process monitoring.
  • Wear-resistant chamber lining.
  • Easy integration with pipe coating and painting lines.

Specializations:

Enquiry Now
  • Complete Pipe Coverage: Ensures full circumferential cleaning.
  • High Productivity: Designed for large volumes of pipes and tubes.
  • Customizable Design: Adjustable for different diameters and lengths.
  • Integration Ready: Can be paired with coating, painting, and wrapping lines.
  • Durable Construction: Built for continuous, heavy-duty use.
Enquiry Now

Material Compatibility

  • Metals: Seamless and welded steel pipes, alloy tubes.
  • Applications: Oil & gas pipelines, water pipelines, structural tubes.

Working Principle

  1. Pipes are loaded onto diabolo-shaped conveyor rollers.
  2. As the pipe advances, the rollers rotate it while moving it forward.
  3. Multiple blast wheels positioned around the chamber bombard the pipe surface with abrasive.
  4. The rotating motion ensures Complete Circumferential Cleaning.
  5. Pipes exit the chamber fully prepared for coating or welding.
