Application
- Automotive Industry – Body shells, chassis, panels, and OEM car painting lines.
- Heavy Equipment – Tractors, excavators, cranes, and construction machinery.
- Aerospace – Aircraft structures, fuselage panels, and engine parts.
- Shipbuilding – Marine engines, propellers, and hull coatings.
- Energy Sector – Wind turbine blades, solar frames, and power equipment.

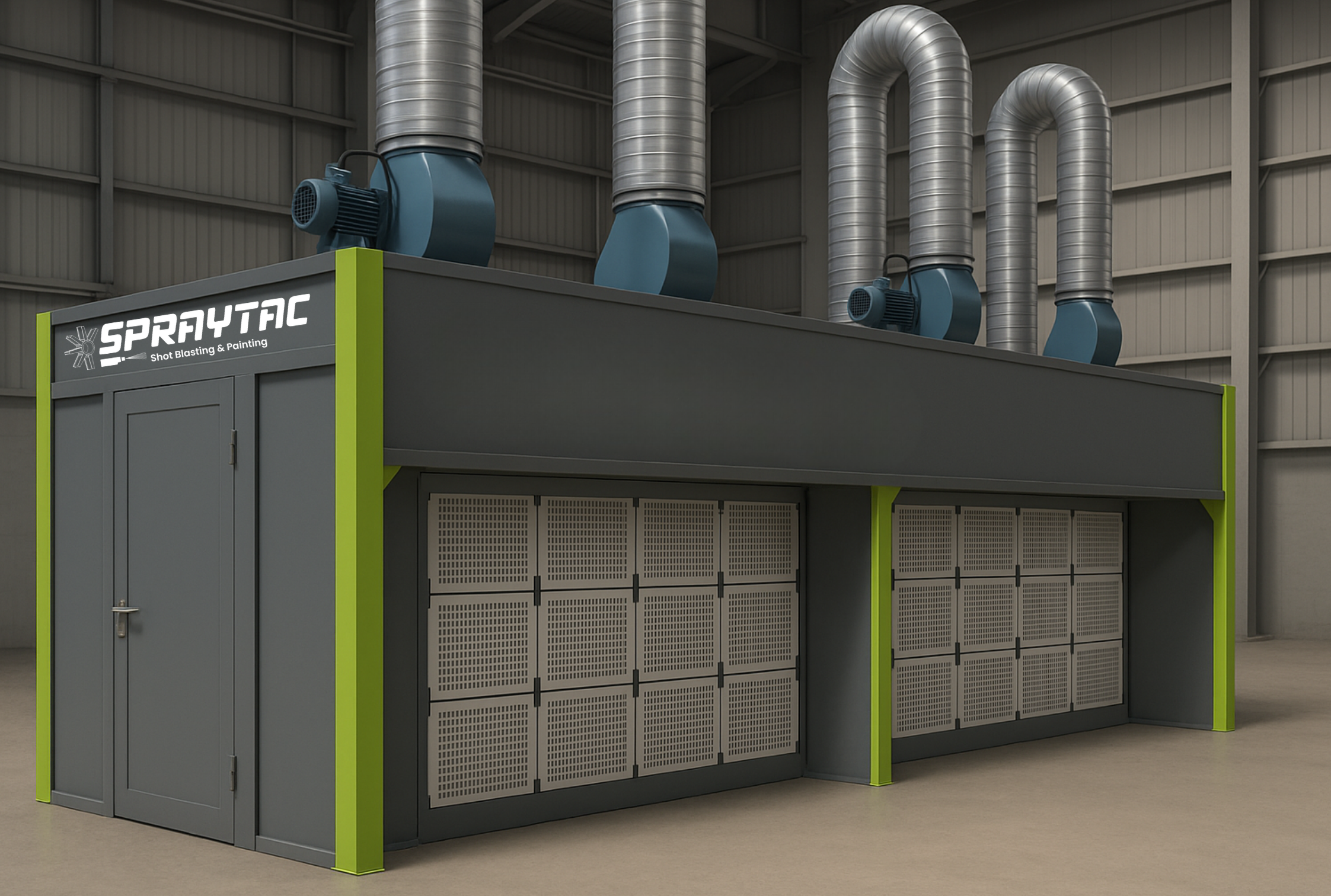

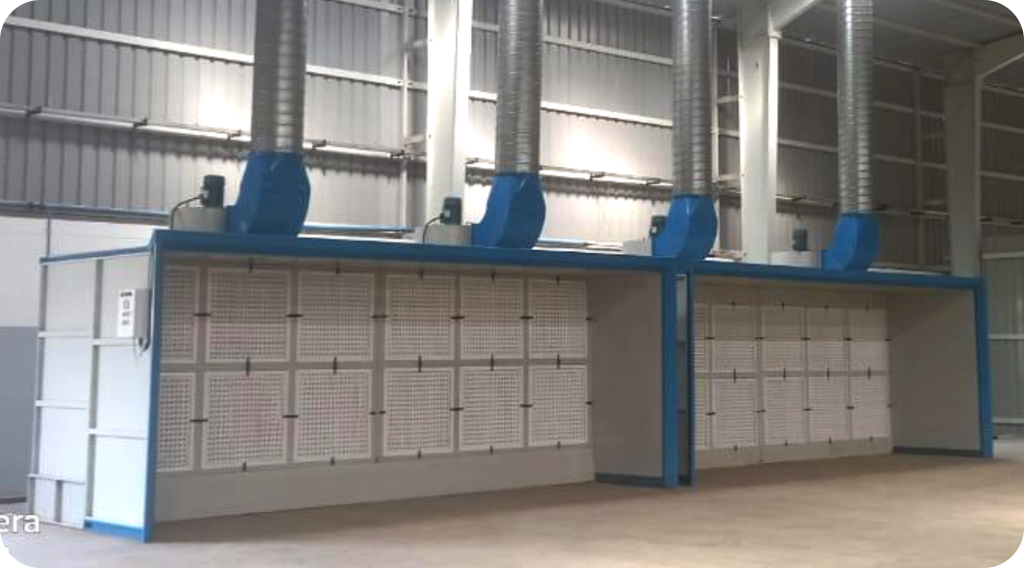

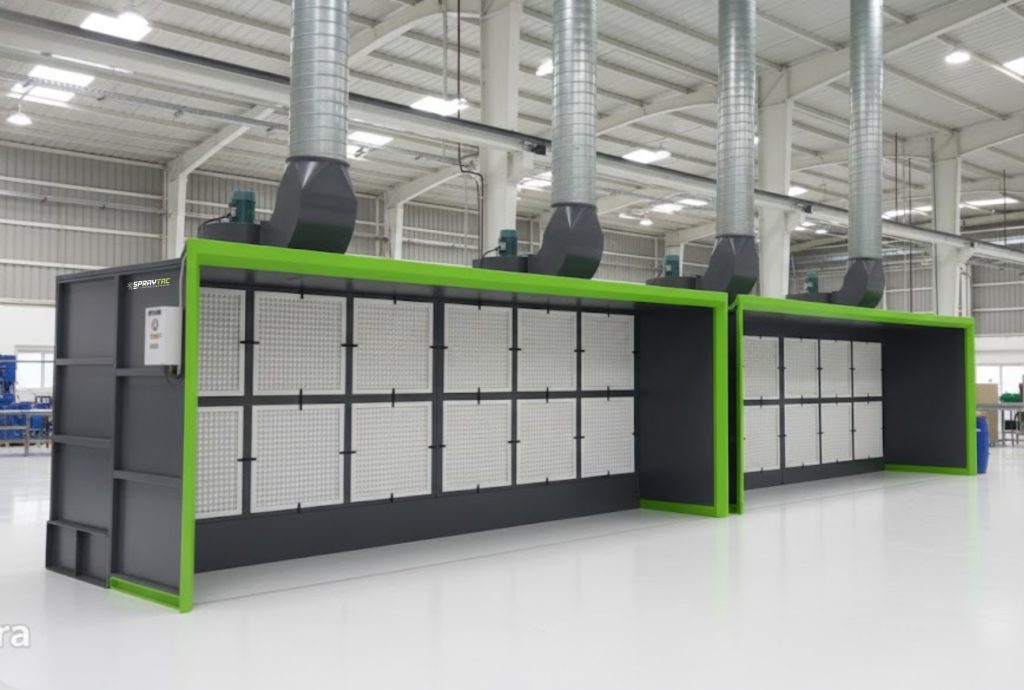

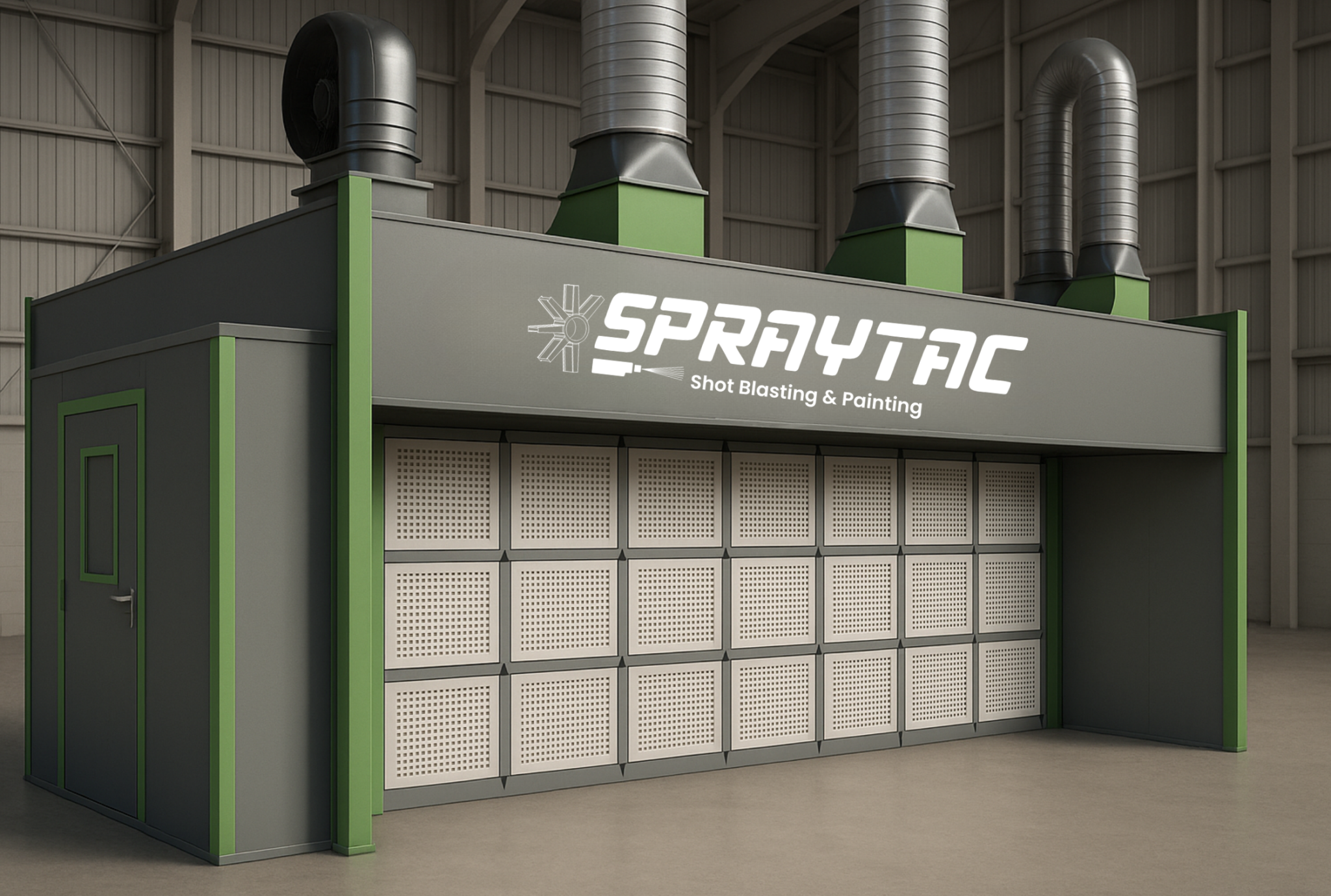

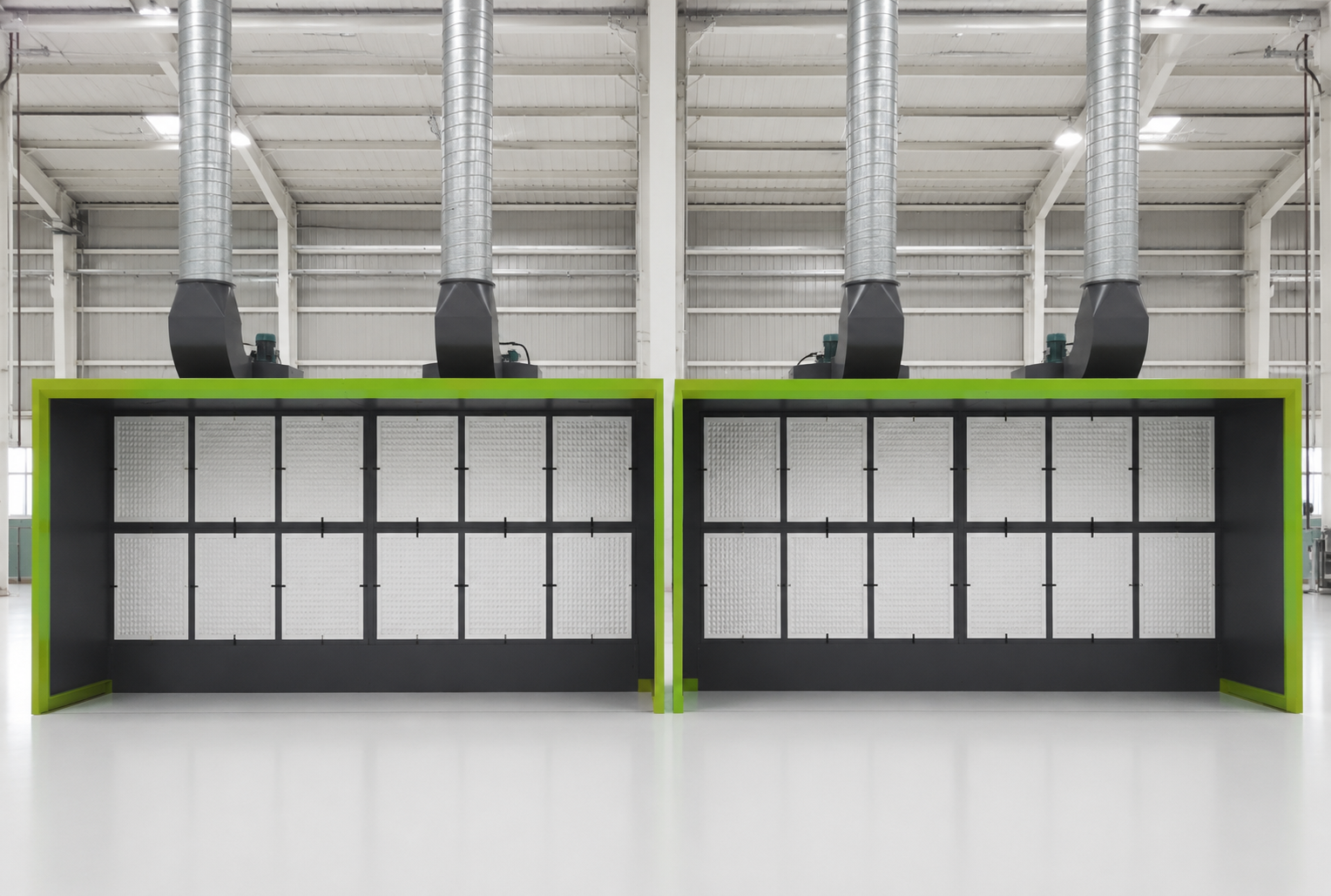

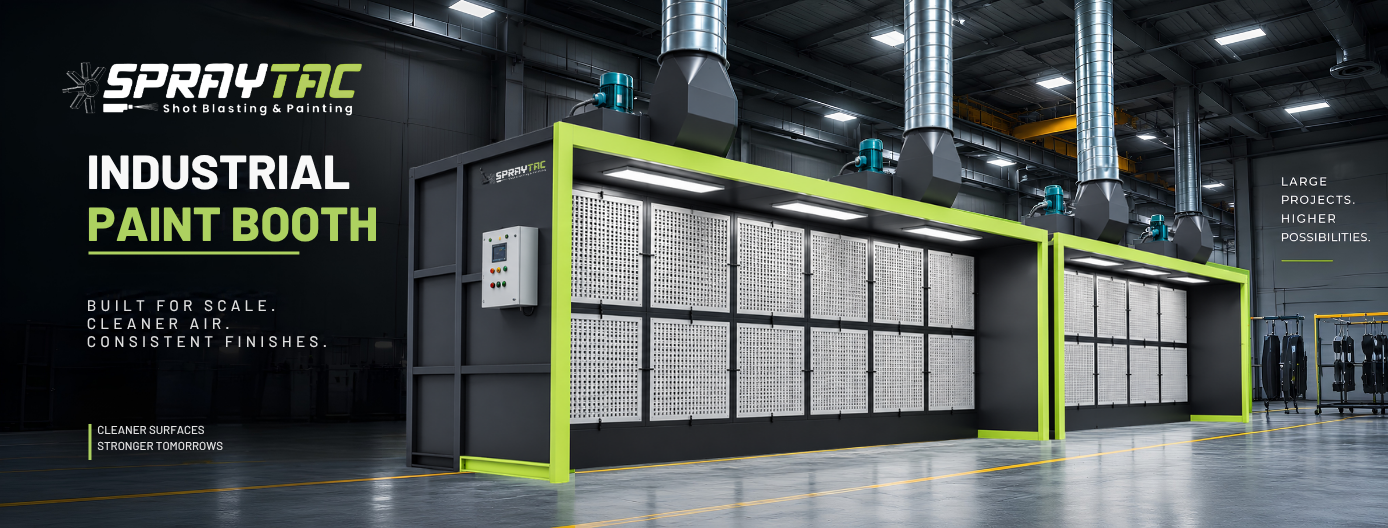

Industrial Paint Booth
The Spraytac Industrial Paint Booth is a Heavy-Duty Coating Solution designed for large-scale industries where painting is a Continuous, High-Volume & Highly Controlled Operation. Unlike small or medium booths designed for cars or furniture, the Industrial Paint Booth is engineered to handle Massive Components, Large Structures & Continuous Conveyorized Production Lines.
Built with Rugged Steel Construction, Advanced airflow systems & Customizable Filtration Options, this booth ensures Long-Lasting Durability, Flawless Coating Quality & Compliance With Strict Environmental Standards. It is specifically designed for industries such as Automotive OEMs, Heavy Machinery, Agricultural Equipment, Aerospace, Shipbuilding, Wind Energy & Defense Manufacturing.
Advantages & Benefits
- Handles Large Products – Built for oversized machinery and assemblies.
- Superior Finish Quality – Ensures consistent coatings at industrial scale.
- Higher Productivity – Conveyorized systems and automation reduce downtime.
- Cost Savings – Optimized airflow reduces energy consumption.
- Worker Safety – Cleaner environment reduces VOC exposure.
- Scalable Design – Adaptable for different industries and production sizes.
Features:
- Heavy-Duty Design – Built for large-scale, continuous operation.
- Flexible Configurations – Downdraft, Side-Draft, or Cross-Draft Options.
- High Filtration Efficiency – Meets Global Emission Standards.
- Lighting System – Designed For Accurate Color Inspection.
- Automation Ready – Integrates with Robots, Conveyors, and SCADA Systems.
- Energy Efficiency – VFD-Driven Fans, Optimized Airflow, & Heat Recovery Systems.
- Safe Operation – Fire Suppression, Explosion-Proof Motors & ATEX Compliance.
Working Principle
- Preparation – Components or large assemblies are moved into the booth manually or via conveyor systems.
- Air Intake – Fresh air is filtered through multiple stages before entering the booth.

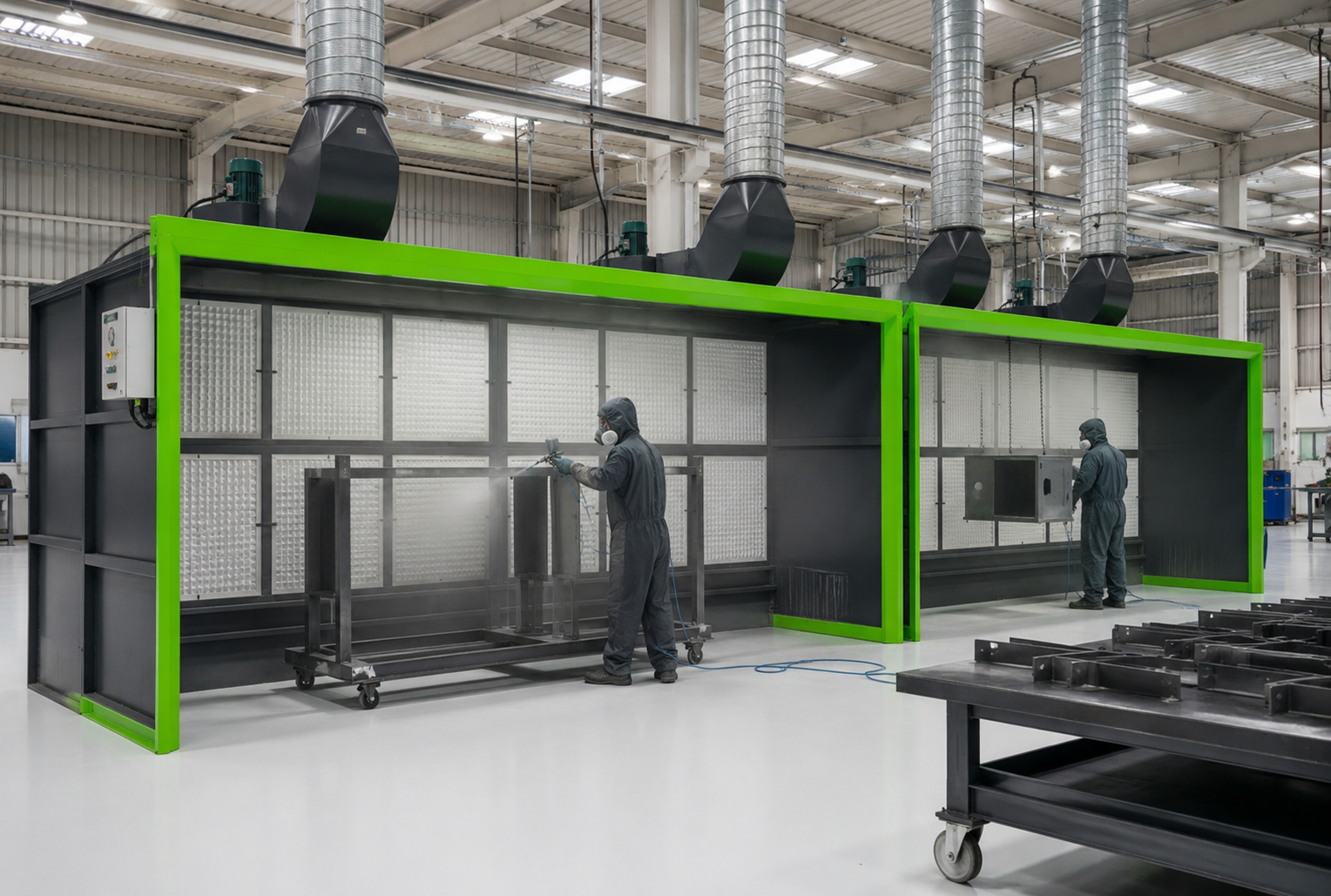

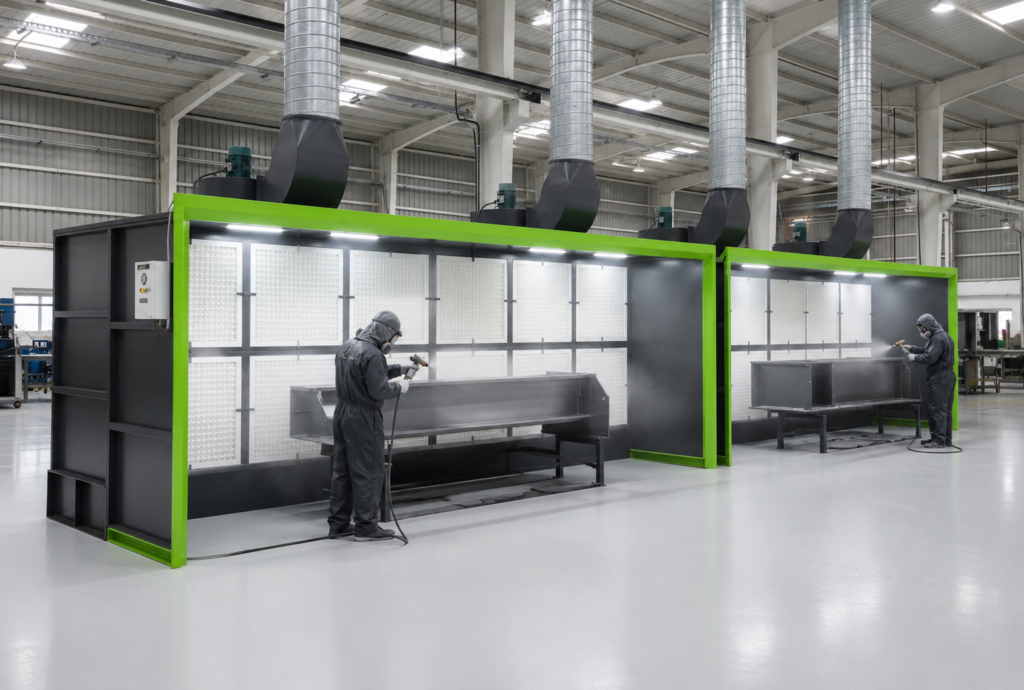

- Paint Application – Operators (or robotic arms) apply coatings with consistent spray patterns.
- Overspray Capture – Airflow directs paint mist into the exhaust filter system or water wash walls.
- Filtration & Exhaust – Overspray particles are trapped, and clean air is released back to the environment.
- Optional Curing – Integrated drying systems or conveyorized ovens cure coatings quickly and efficiently.
