Application
- Automotive – Body panels, refinishing, and component painting.
- Furniture & Woodworking – Wooden panels, lacquered furniture, cabinets.
- Industrial Equipment – Heavy machinery, fabricated steel components.
- Plastic & Composites – Molded parts, automotive interiors, consumer goods.
- Aerospace – Precision parts requiring high-quality coatings.

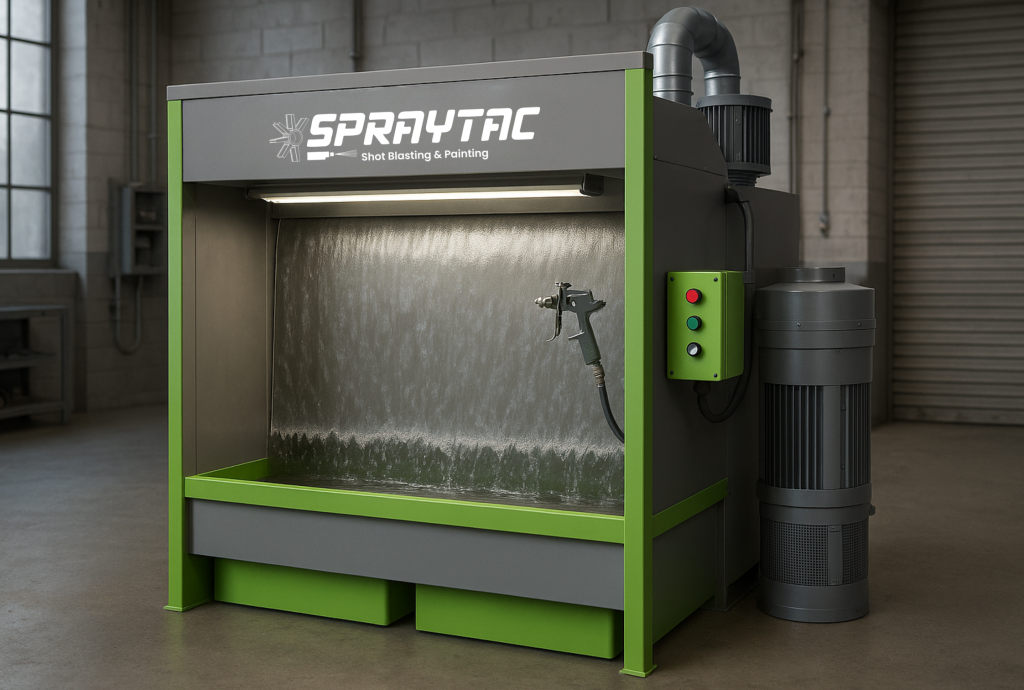

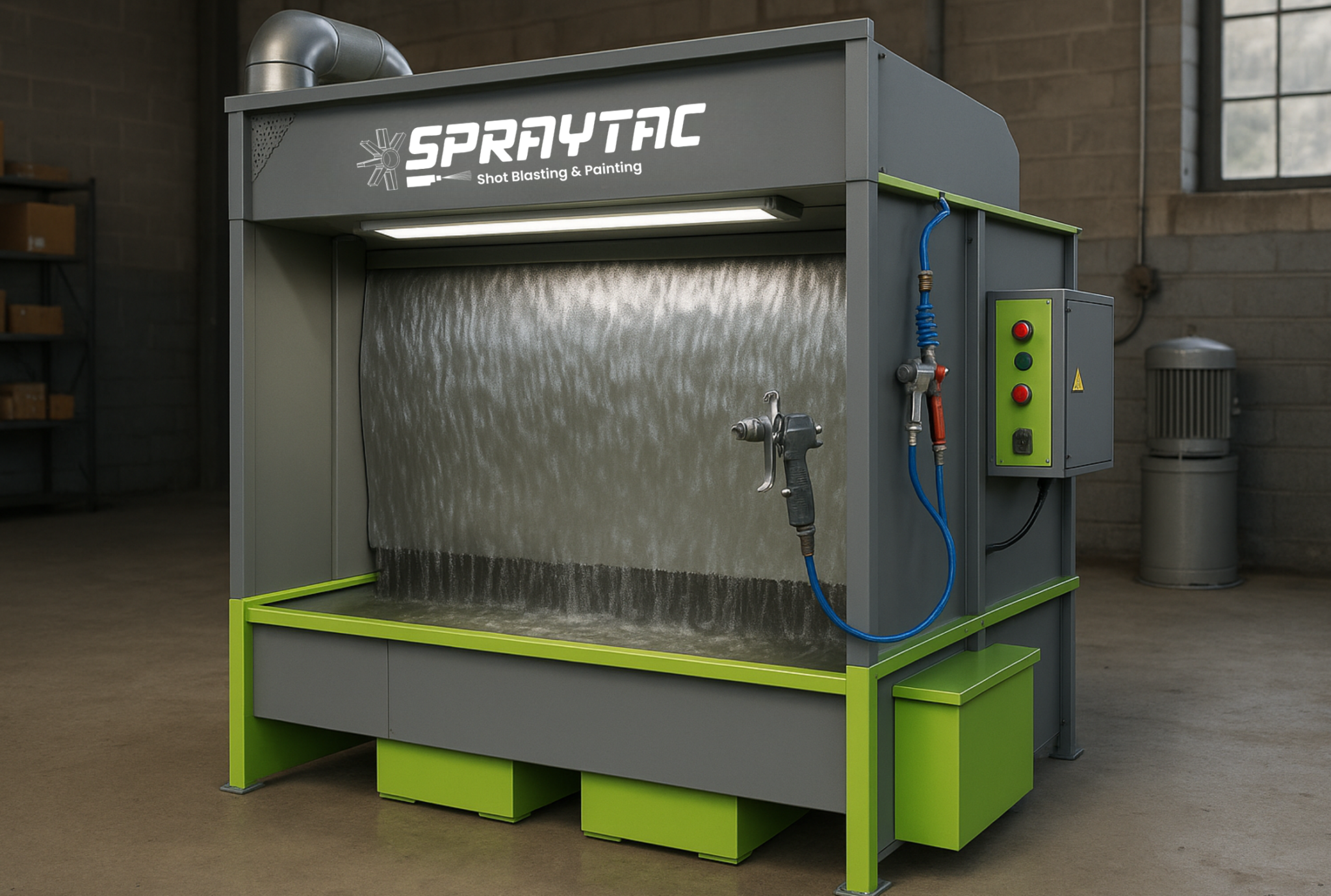

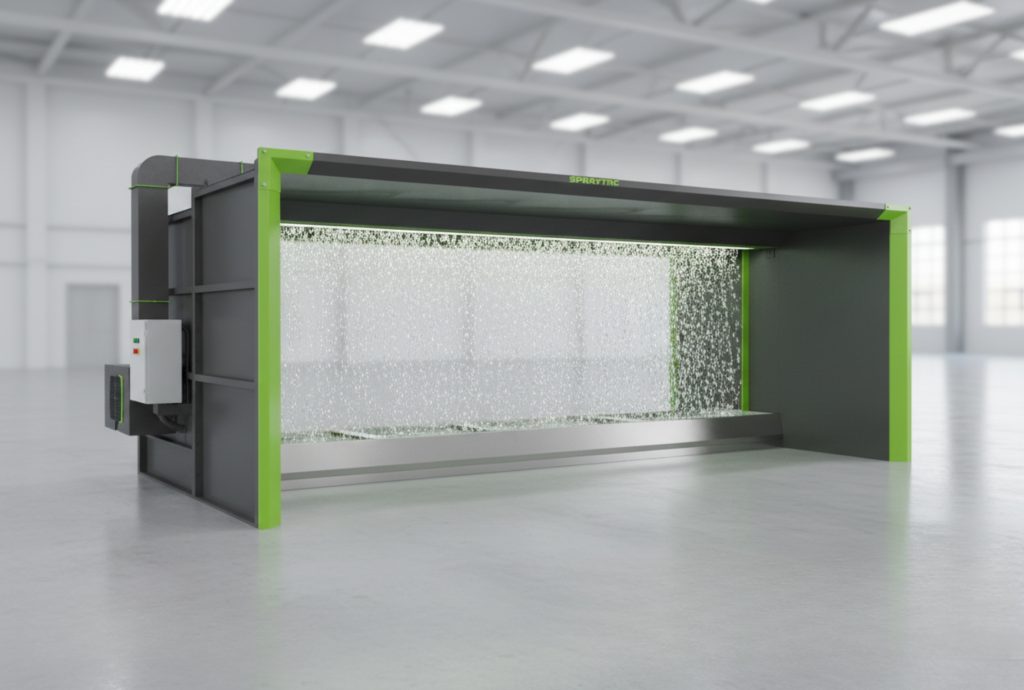

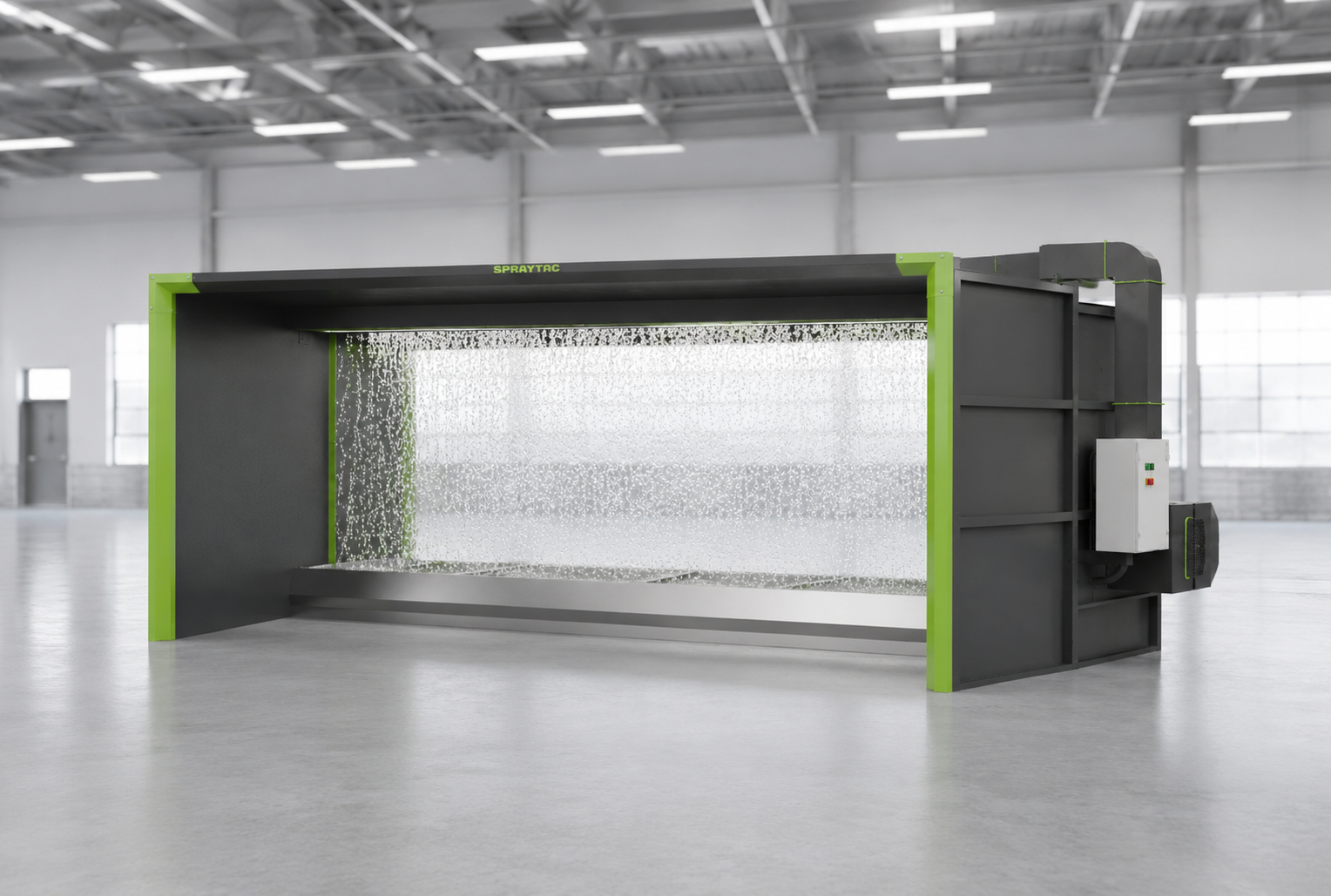

Water Curtain Paint Spray Booth
The Spraytac Water Curtain Paint Spray Booth is a Specialized Finishing System designed for industries where Paint Overspray Control, Operator Safety & Environmental Compliance are top priorities. Unlike dry filter booths, the water curtain system uses a Continuous Sheet of Water that traps paint particles effectively, ensuring a Cleaner Working Environment & Longer Operating Cycles With Minimal Filter Replacements.
This type of booth is particularly valuable in Automotive, Furniture, Metal Fabrication, Plastic Components, Aerospace & Heavy Equipment Industries, where painting is carried out regularly and overspray levels are high.
Specializations & Options
- Conveyorized Systems – For continuous production lines.
- Multi-Curtain Booths – Double or triple water curtains for extra-heavy painting.
- Integrated Drying Sections – Optional ovens for curing post-spray.
- Explosion-Proof Configurations – For solvent-rich paints.
- VOC Scrubber Integration – For maximum environmental compliance.
Features:
- High Overspray Capture – Water curtain ensures superior air quality.
- Low Maintenance – Fewer consumables compared to dry filter booths.
- Eco-Friendly – Reduces dust and VOC emissions.
- Heavy-Duty Construction – Durable, corrosion-resistant water tank.
- Continuous Operation – 24/7 Operation capability with reliable pumps.
- Customizable Layouts – Available in single, double, or tunnel-type booths.
- Safe Operation – Water minimizes fire risks from paint buildup.

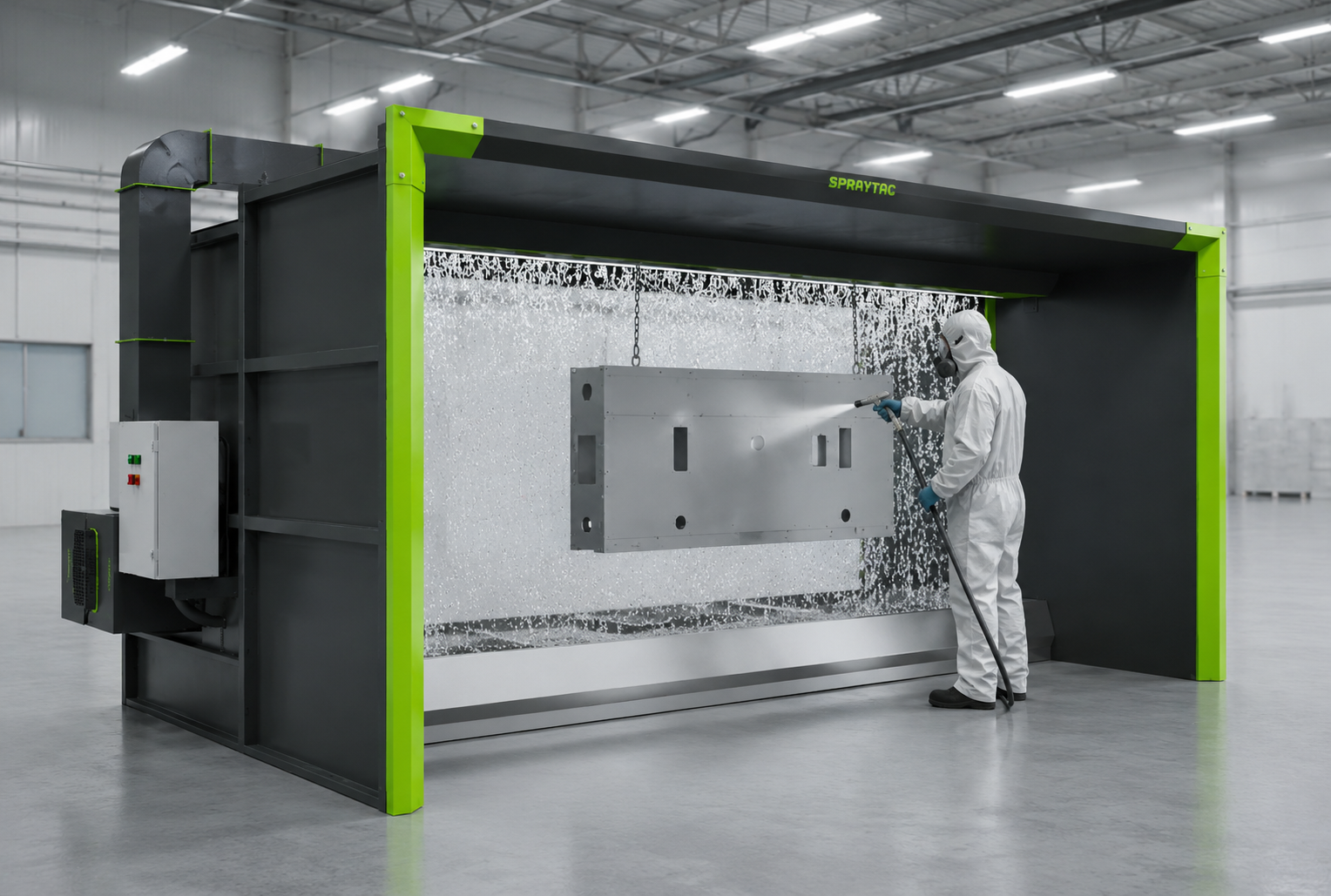

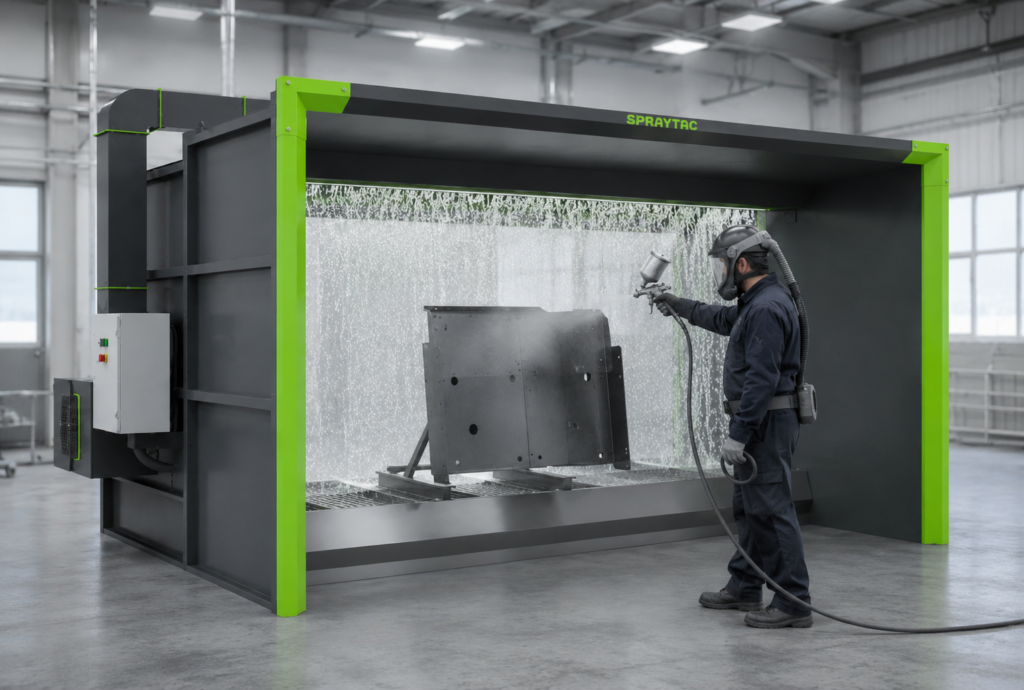

Working Principle
- Air Intake – Fresh filtered air enters through the intake system.
- Paint Application – Operators spray paint on the workpiece, generating overspray.
- Water Curtain Action – Overspray particles are immediately trapped by the water curtain wall.
- Filtration & Recirculation – Captured particles settle in a water tank; clean water is recirculated back to the curtain.
- Exhaust Phase – Mist eliminators filter remaining droplets before releasing clean air into the environment.
