Application

Foundries – Removal of sand, scale, and casting residues.
Automotive & Forging Industry – Cleaning forgings, gears, fasteners, springs, and hardware.
Heat Treatment Plants – Oxide and scale removal.
Surface Preparation – Prior to painting, powder coating, galvanizing, or other finishing processes.

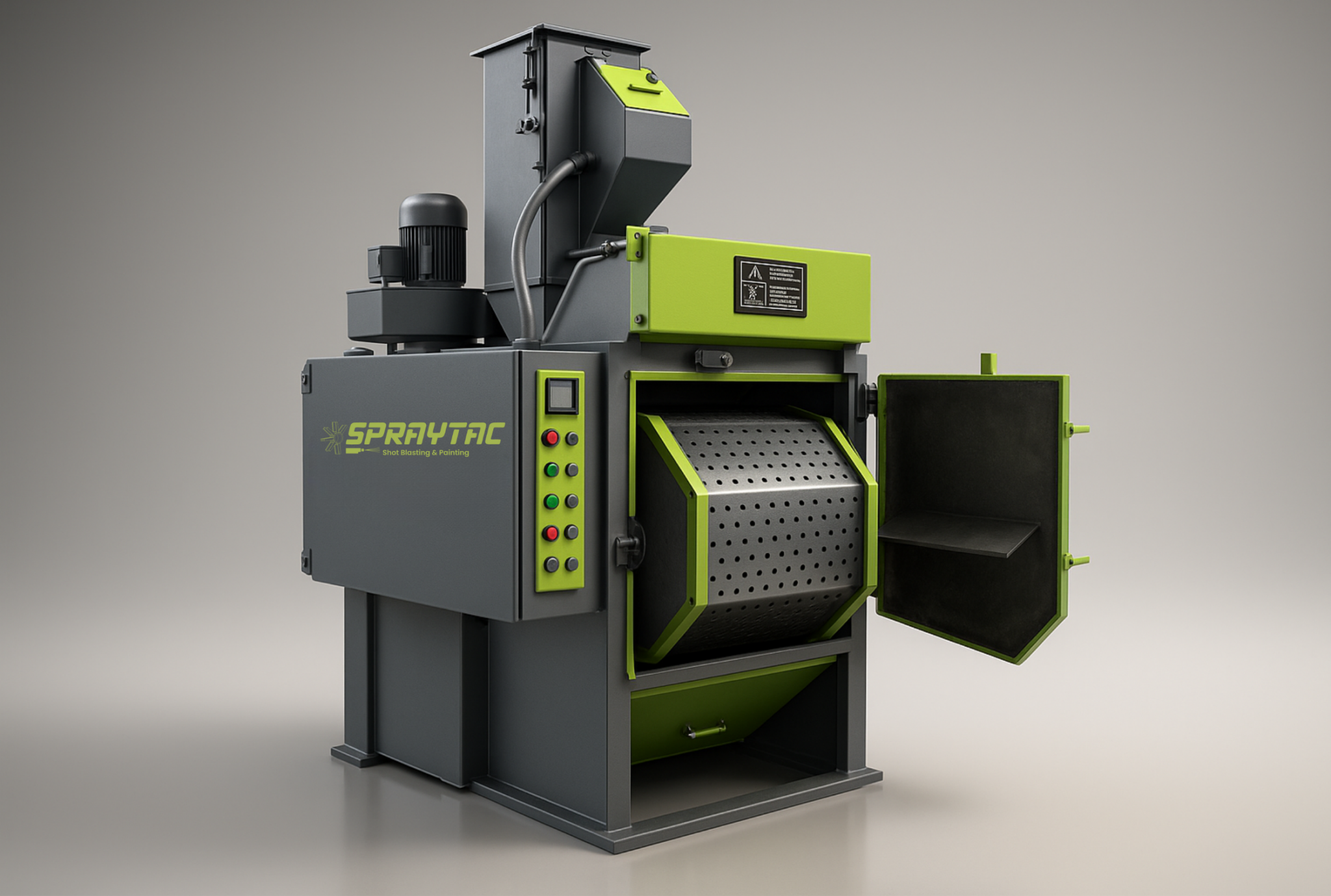

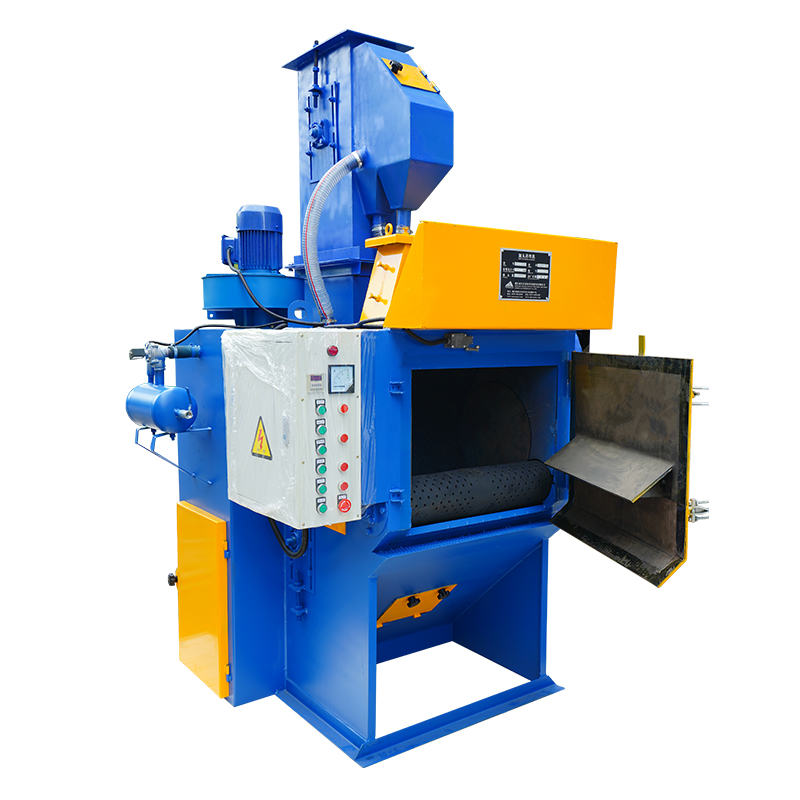

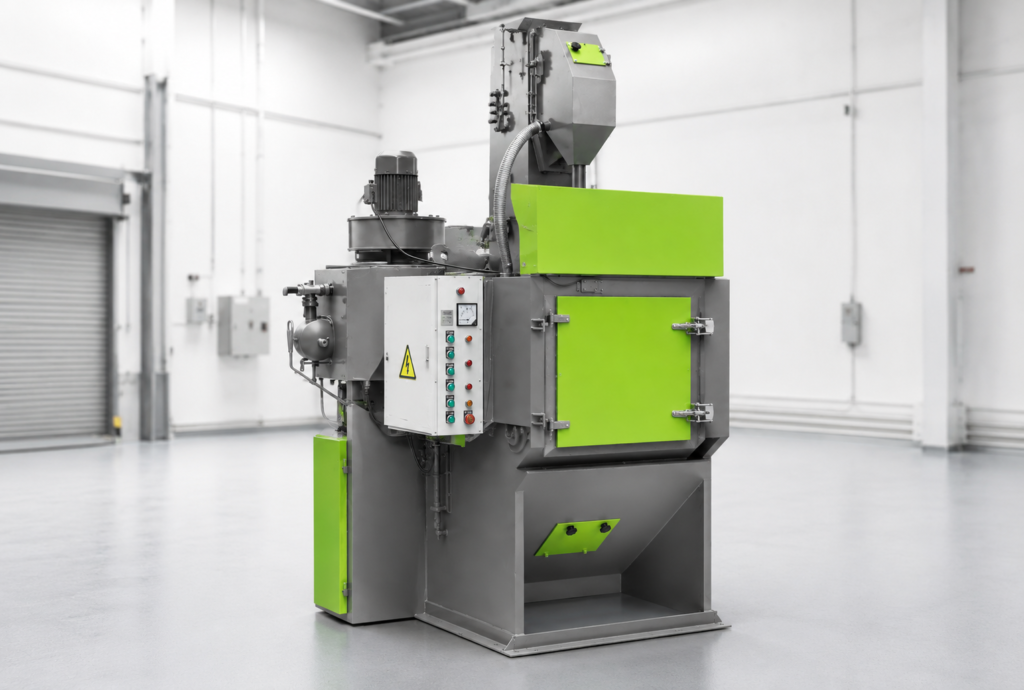

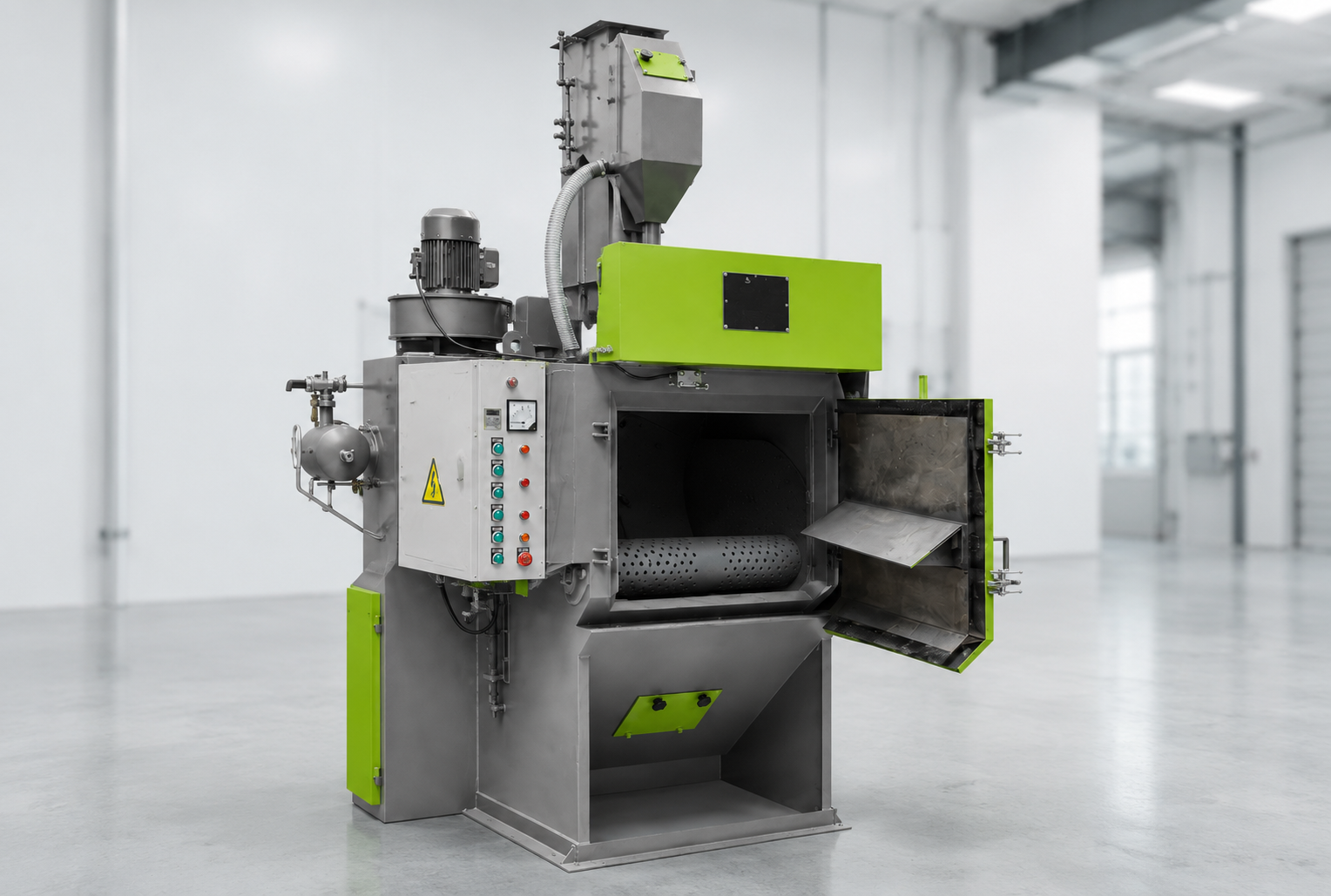

Tumblast (Tumble Type) Shot Blasting Machine

The Tumblast Shot Blasting Machine is a Compact, Highly Productive & Robust Surface Treatment Solution for industries requiring efficient cleaning of bulk materials. The tumbling action not only enhances the blasting effect but also reduces cycle times by ensuring all surfaces are blasted without repositioning.

Its Compact Design requires minimal floor space compared to continuous conveyor systems, yet delivers high throughput. With its Abrasive Recovery & Recycling System, it ensures Lower Operational Costs and reduced wastage. The inclusion of Dust Extraction Units maintains workplace safety and environmental compliance.

Standard / Customization

Drum Capacity: 200 – 1,000 liters (custom sizes available).
Drum Lining Options: High-durability Manganese Steel or Rubber Lining for delicate parts.
Automation Options: Manual, semi-automatic, or fully automated loading/unloading systems.
Accessories: Abrasive reclamation unit, dust collector, noise reduction system, media classifier, PLC/HMI control panels.
Custom Build: Available in special designs to match production lines, conveyor systems, or robotic integration.

Features:

- High-Efficiency Blast Wheels: Delivers maximum cleaning power with lower energy consumption.
- Dynamic Tumbling Drum: Ensures complete exposure of all part surfaces.
- Customizable Drum Linings: Rubber lining for delicate components and steel for heavy-duty parts.
- Abrasive Recycling System: Reduces wastage and increases efficiency.
- Dust Extraction System: Keeps the environment clean and ensures operator safety.
- PLC / HMI Based Control: Advanced monitoring, cycle automation, and safety interlocks.
- Compact Layout: Space-saving design with easy installation.
- Low Maintenance Design: Wear-resistant materials and accessible service parts.
- Optional Automation: Trolley loading, overhead cranes, or robotic integration.

Material Compatibility

Metals: Steel, cast iron, stainless steel, aluminum, brass.
Non-Metals: Plastics, ceramics (with suitable abrasives).
Abrasive Options: Steel shots, steel grit, aluminum oxide, garnet, glass beads depending on application.

Working Principle

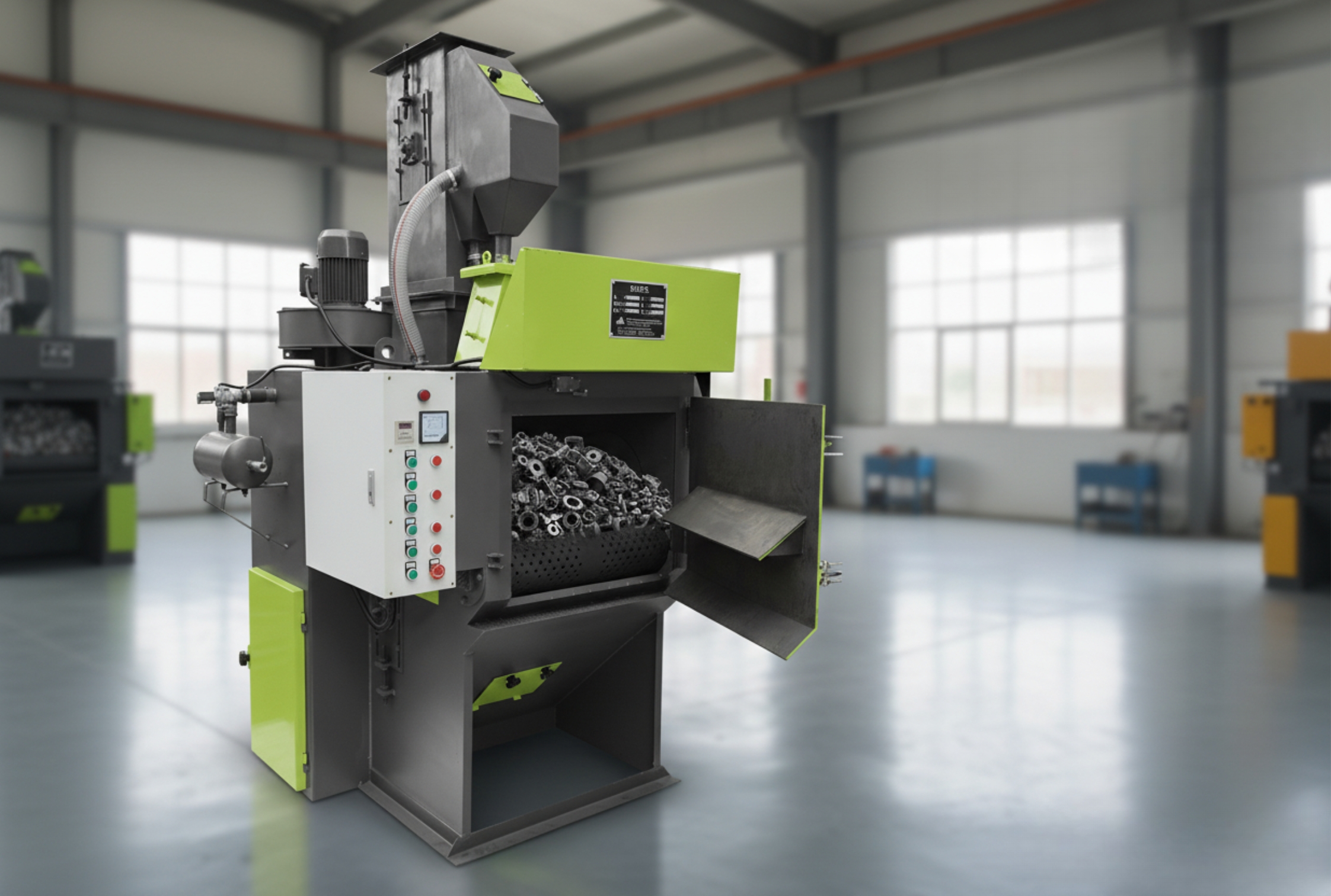

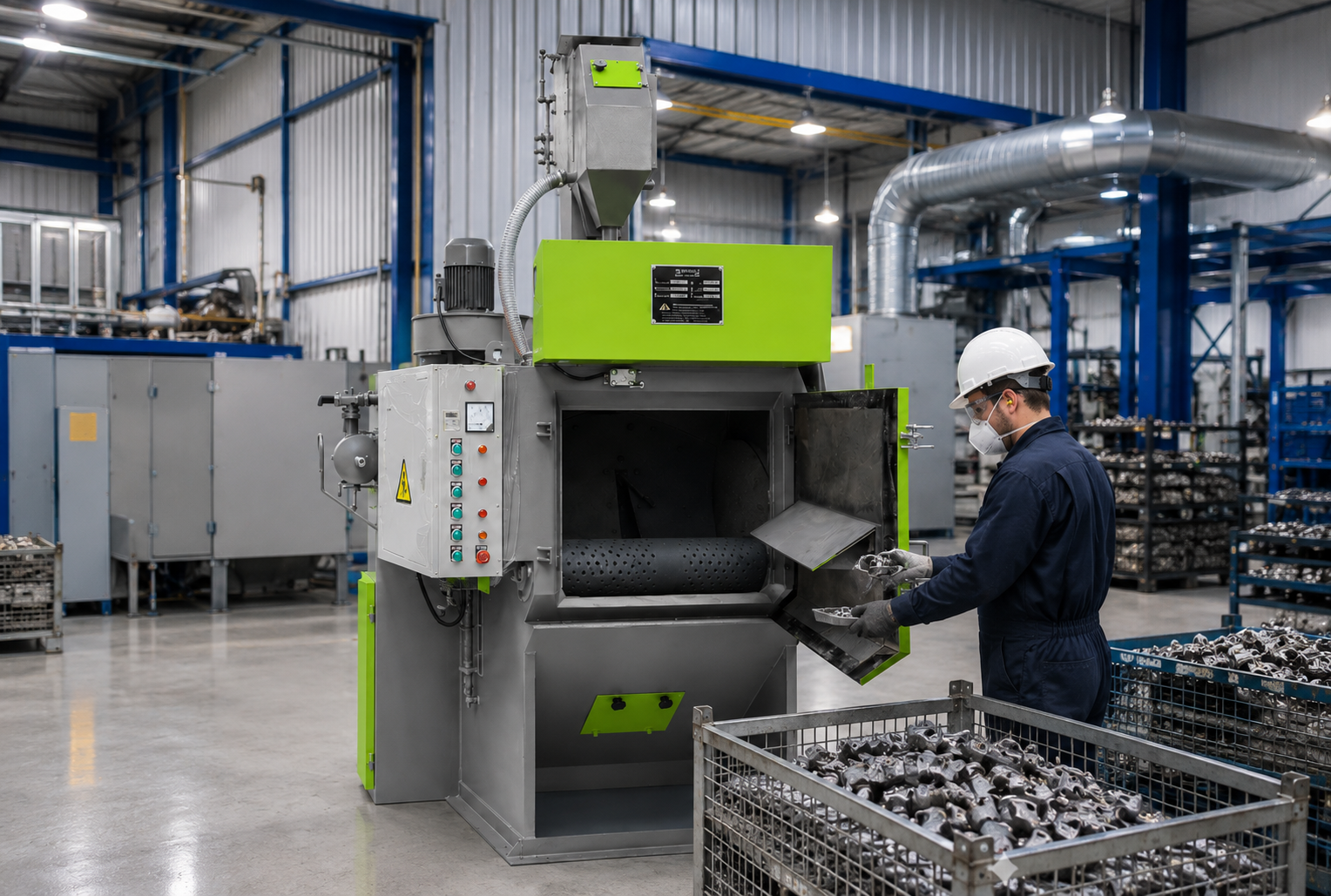

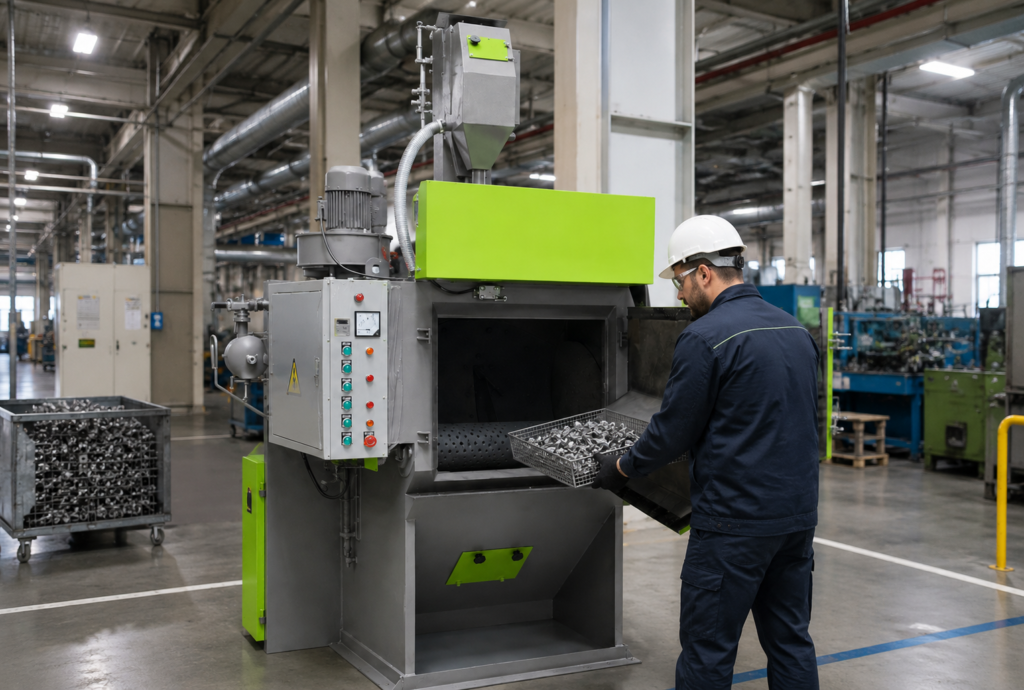

Parts are loaded into the drum (manually, by trolley, or automatically).
The drum rotates continuously, tumbling the components inside.
High-speed blast wheels mounted in the chamber propel abrasive media at high velocity onto the rotating load.
As the drum turns, all sides of each component are exposed to the abrasive stream, ensuring thorough 360° cleaning.
Used abrasive falls into the recovery system, where it is separated from dust and debris, and then recycled back into the blasting cycle

Specializations:

High Productivity: Ideal for industries that require cleaning of thousands of parts per shift.
Uniform Surface Cleaning: Achieves consistency across different shapes and batches.
Flexible Usage: Capable of handling a wide range of materials and abrasives.
Cost Efficiency: Reduced abrasive and energy consumption due to recycling and optimized design.
Custom-Built Solutions: Available in modular designs to fit into existing production setups.
Qa1 q
Durability: Heavy-duty construction ensures reliability in harsh industrial environments.
